Typical application
For inlet screening and protection of downstream wastewater equipment.
Custom Water Treatment Equipment
Mechanical Screen
Driven rakes or a rotating tooth chain lift and discharge screenings captured in an inlet channel; bar spacing and channel hydraulics determine the configuration.
Back to ProductsFinal model, dimensions, materials, performance, and supply scope follow the approved project data sheet and quotation.
Common industry terms: Mechanical Bar Screen, wastewater screening equipment, automatic rake screen
Product overview
Confirm the duty before defining the configuration.
Driven rakes or a rotating tooth chain lift and discharge screenings captured in an inlet channel; bar spacing and channel hydraulics determine the configuration.
Selection focus
Provide channel width and depth, peak flow, opening, discharge height, and screenings type, and confirm allowable headloss, materials, and overload protection.
Technical noteThis page supports early project discussion and does not define a fixed stock specification or performance guarantee. Operating conditions, material compatibility, connections, and acceptance criteria require confirmation.

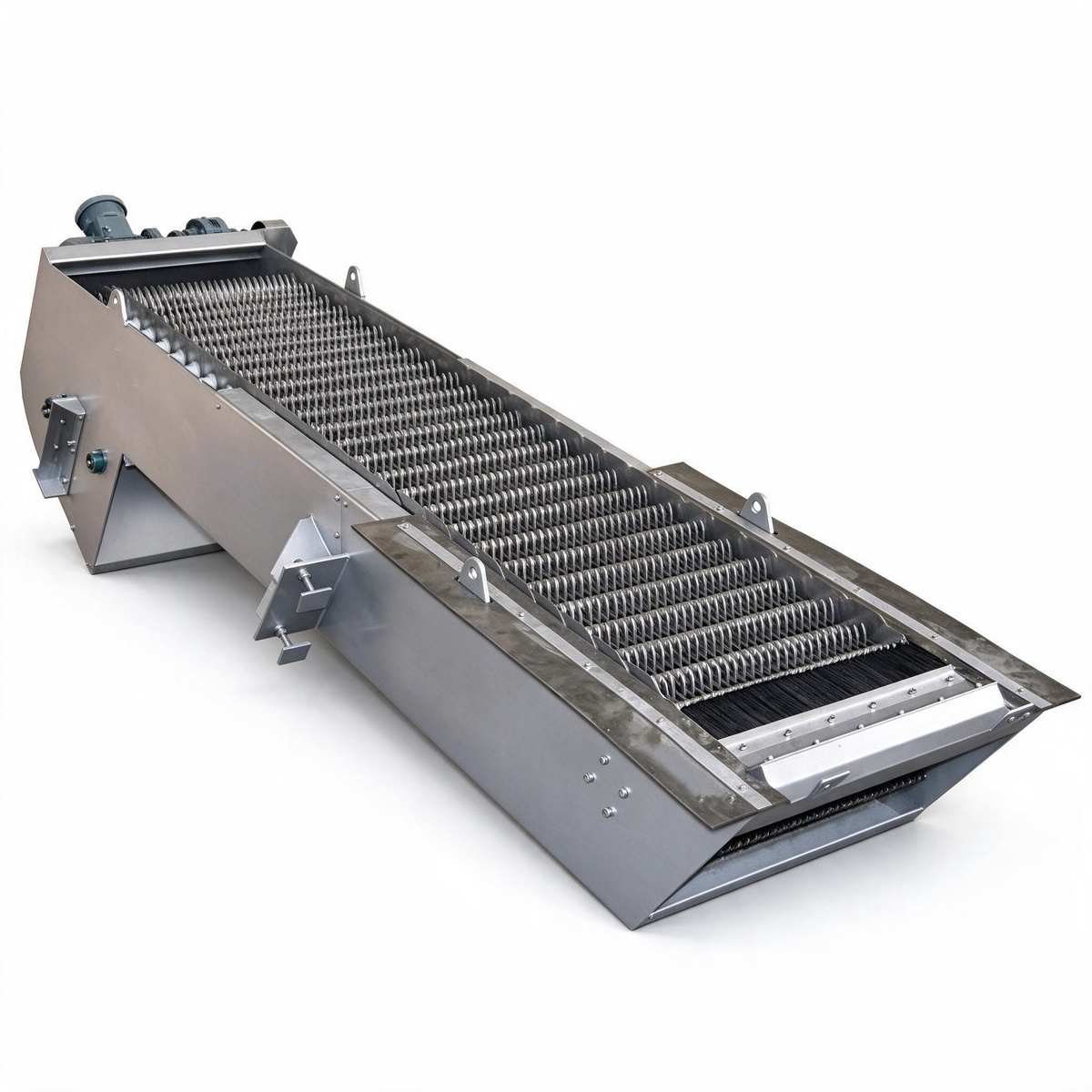

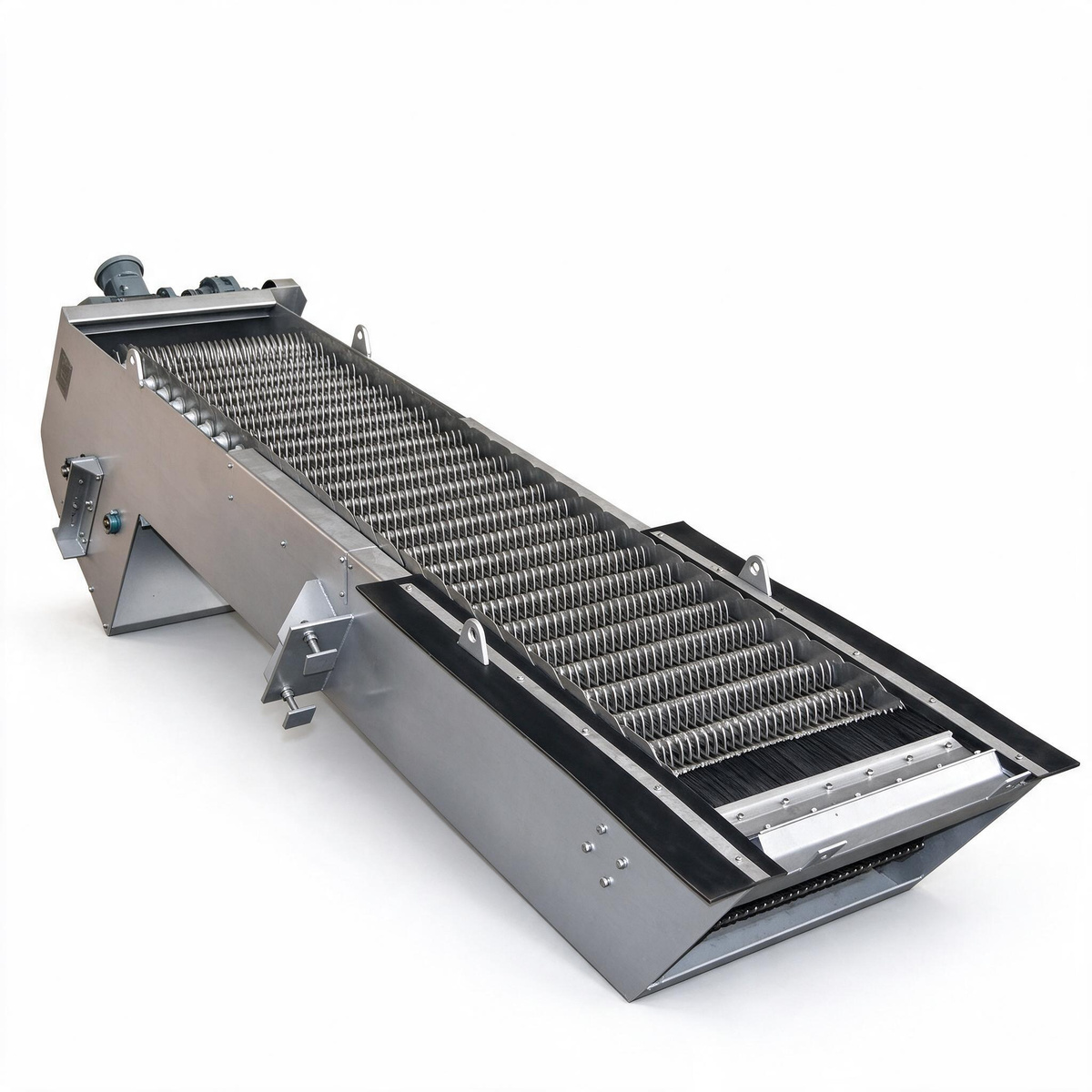

Product views
Review the product form from multiple angles
Images support category and form review; final supplied construction follows approved drawings and samples.
Technical inquiry
Information to provide for selection
Complete project data helps define the suitable configuration, supply scope, and quotation basis.
