Typical application
For cast-in-place underdrain floors in V-filters, BAF systems, and filter retrofits.
Water Treatment Components & Fittings
ABS Filter Plate
A moulded ABS template can locate nozzle sleeves during cast-in-place filter-floor construction; structural load capacity is determined with the concrete slab and support system.
Back to ProductsFinal model, dimensions, materials, performance, and supply scope follow the approved project data sheet and quotation.
Common industry terms: ABS Filter Plate, filter floor formwork, water filter underdrain plate
Product overview
Confirm the duty before defining the configuration.
A moulded ABS template can locate nozzle sleeves during cast-in-place filter-floor construction; structural load capacity is determined with the concrete slab and support system.
Selection focus
Confirm whether the requirement is an ABS soffit form or a complete structural filter floor, and provide surface load, beam spacing, nozzle layout, and construction drawings.
Technical noteThis page supports early project discussion and does not define a fixed stock specification or performance guarantee. Operating conditions, material compatibility, connections, and acceptance criteria require confirmation.

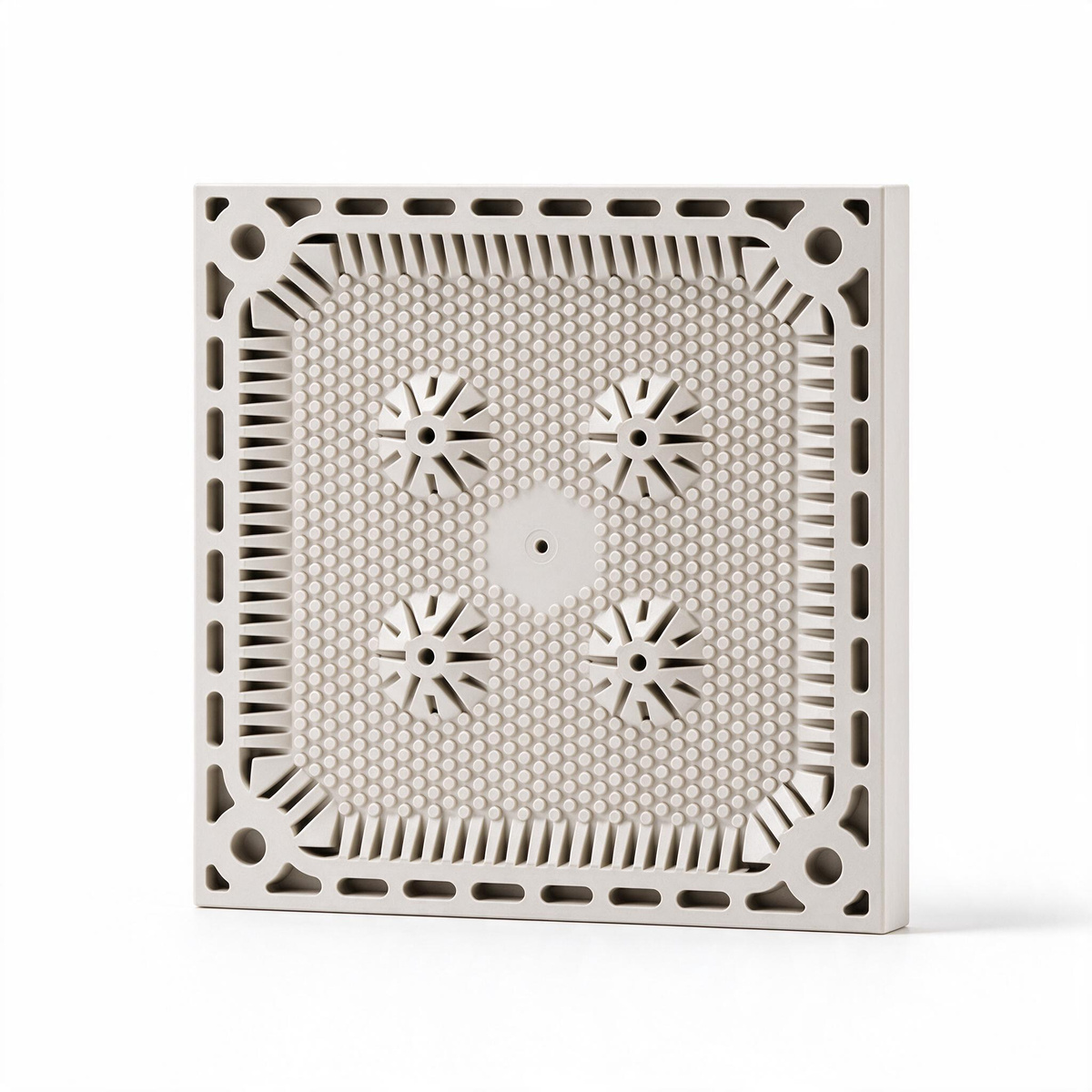

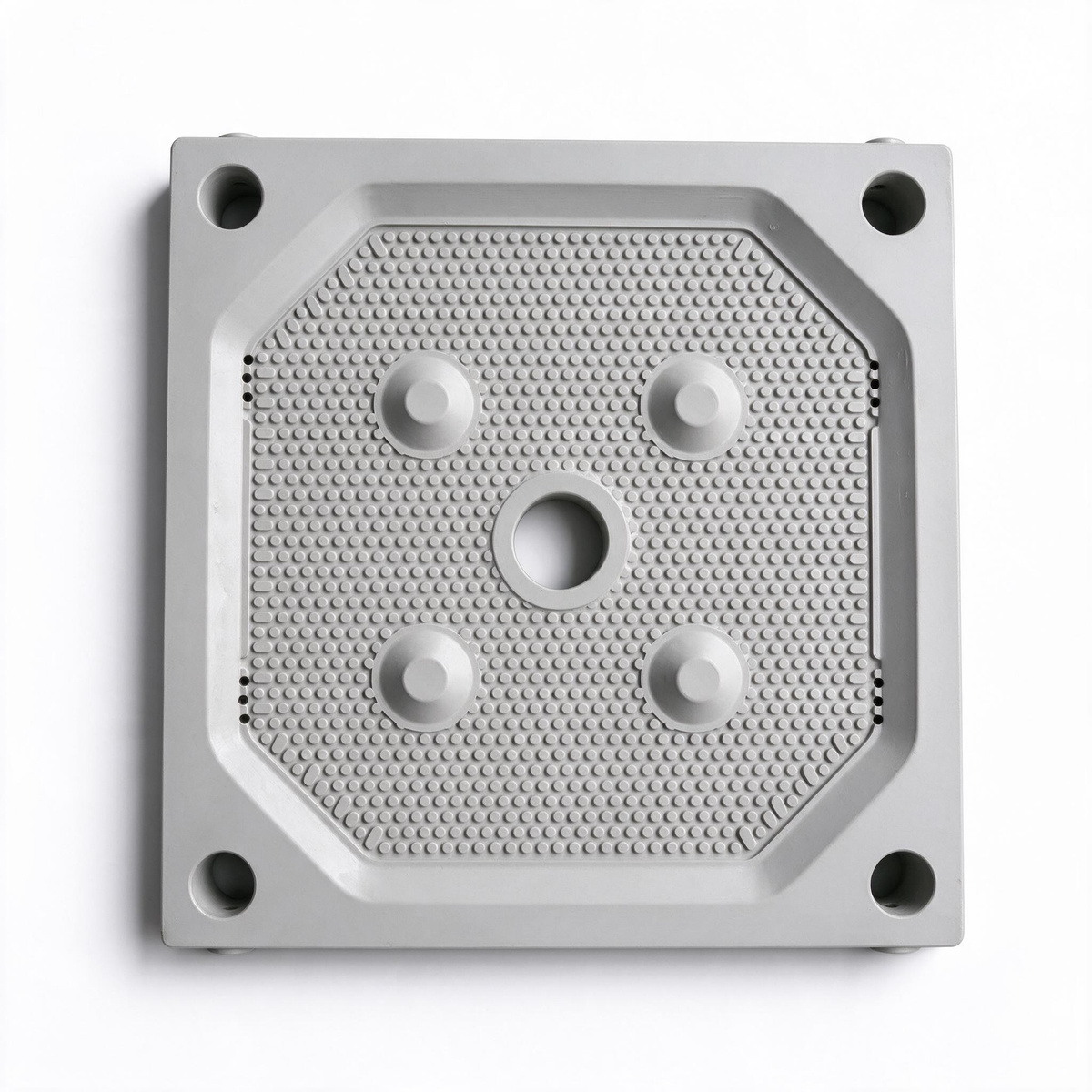

Product views
Review the product form from multiple angles
Images support category and form review; final supplied construction follows approved drawings and samples.
Technical inquiry
Information to provide for selection
Complete project data helps define the suitable configuration, supply scope, and quotation basis.
